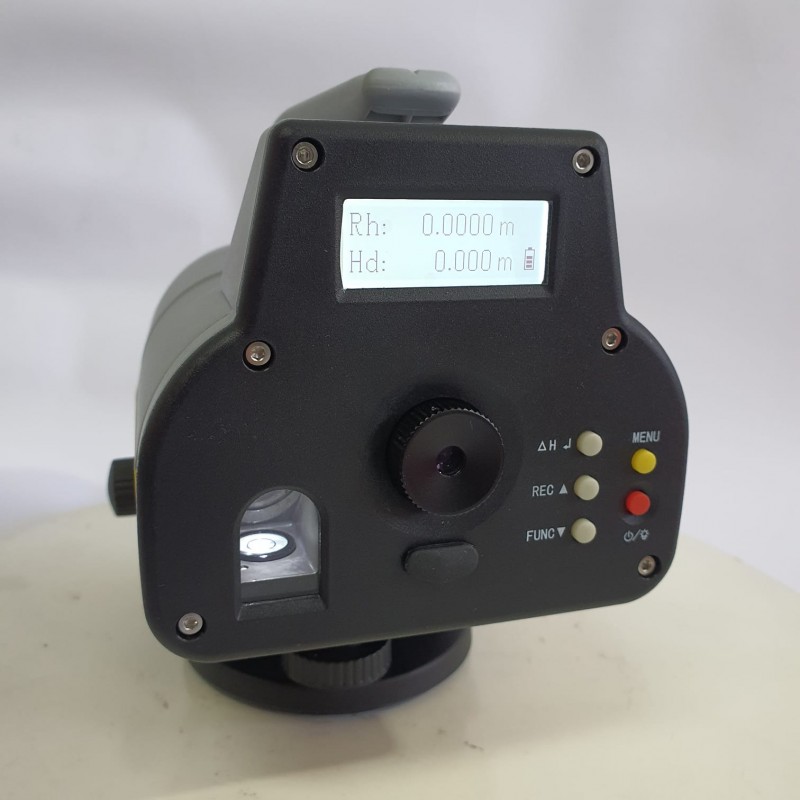

Alpha Geo AGL-32 Digital Auto Level
Alpha Geo AGL-32 Digital Auto Level atau yang biasa di sebut Waterpass digital sangat cocok untuk para surveyor untuk mengukur beda tinggi lahan tanah dengan sangat cepat dan akurat. Memiliki tingkat akurasi yang sangat tinggi dengan magnification 32x dan measuring range 2m sampai 100m.
Specifications
Magnification 32x
Image Erect
Standard Deviation on 1km of Double Leveling :
Electronic measurement ±1.0mm/km
Visual Measurement ±1.5mm/km
Accuracy of Distance Measurement :
D≤10m <±10mm
10m50m <±0.2%D
Measuring Range 2m-100m
Minimum Displayed Value :
Elevation 0.0001m
Distance 0.001m
Measuring Time <3”
Measuring Unit m
Graduation of Horizontal Circle 360°
Telescope :
Resolving power 3”
Field of View 1°20’
Compensator :
Type Magnetic Damping
Compensation Range ±15’
Compensation Accuracy 0.3”/1’
Setting Accuracy ±0.4”
Data Storage :
Internal 1000
Interface Type-C
Circular Level Sensitivity 8’/2mm
Power supply :
Rechargeable Li-ion battery 2200mAh
Continuous working time >20 hours
Net Weight 1.9kgs
Waterproof grade IP55
Working temperature -20°C ~ +50°C
Include :
Alumunium Tripod
Rambu Barcode
