FITUR a- GEO MATRIXII :
Multi constellation 1408 Satelit
AR Camera
Worry-free Storage 64GB
WiFi and WebUl
IMU Tilt Sensor 120 Derajat
GSM & UHF radio 410 MHz to 470 MHz
Battery & Power 7000mAh 12 jam
1P67
Working Mode Static, Network RTK, UHF RTK, PPK & etc.
SPESIFIKASI :
Performance specificationSatelliteGPS: L1C/A, L1C, L2P(Y), L2C, L5GLONASS: L1, L2, L3BEIDOU: B1I, B2I, B3I, B1C, B2a, B2bGALILEO: E1, E5a, E5b,E6QZSS: L1, L2, L5, L6SBAS: L1, L5IRNSS: L5Channels1408 tracking ChannelsCold start<60 sHot start<15 sPositioning output rate1Hz – 20HzSignal Reacquisition<1sRTK Initialization time<10sInitialization Reliability>99.99%Time accuracy20 nsPositioningCode differential GNSS positioningHorizontal: 0.25 m + 1 ppm RMS
Vertical: 0.50 m + 1 ppm RMS
SBAS differential positioning accuracy²: typically <5m 3DRMSStatic GNSS surveyingHorizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMSReal Time Kinematic SurveyingSingle baseline < 30 KMHorizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1ppm RMSNetwork RTKHorizontal: 8 mm + 0.5 ppm RMS
Vertical: 15 mm + 0.5 ppm RMSPhysicalMaterialMagnesium alloyDimensions120mm*72mm ( without bottom connector 20mm)weight0.76kgOperating temperature-40°C to + 75°CStorage temperature-55°C to + 85°CProtection IPIP67 dust proof, protected from 30min immersion to depth of 1mShockSurvive a 2m pole drop onto concreteVibrationMIL-STD-810GHumidity100%, condensingPower SupplyBatteryPower: 9~24V DC external power input on 5 pin LEMO portSupport USB Type-C fast chargingInternal 7000mAh-7.4V lithium-ion batteryBattery LifeRover Mode: 12 hoursbase Mode: 7 hoursStatic Mode: 15 hoursCommunication & Data StorageI/O interfaceLEMO port (5pin)
Supports power input, serial port control,
and external radio communicationUSB Type-C port Data download / ChargingSim card slot Supports Nano-SIMAntenna port UHF antenna interfaceRadio modemTransmit power 1/1.5w switchableFrequency band 410MHz-470MHz; supports to set the frequencyProtocols TrimTalk450s, SOUTH, Satel,PCC-EOTCellularIntegrated full frequency multi band 4G modem,
supports WCDMA/CDMA2000/TDD-LTE/FDD-LTEWIFI802.11 b/g standard, access point & client mode,
supports access to hotspot for correction transmissionBluetoothBluetooth 5.2 Classical/BLE Proprietary double-modeData formatRTCM2x, RTCM3x, CMR & CMR+, sCMRxRINEX, NMEA outputsStorage64GB internal memory, supports cyclic storage; with ability
to collect over one year raw observation based on 5 seconds intervalCameraAR5M high-definition camera with large viewing angle and support
for live scene loftingLaser assisted5M high-definition camera, large viewing angle, auxiliary
laser measurement and aimingSystem integrationOS systemIntelligent LINUX operating systemTilt CompensationIMU up to 120°(Calibration free)Supported controllersAll android devices with supported softwareDesignButtonPower keyIndicatorPower indicator, data link indicator, satellite indicator, Bluetooth indicatorVoiceIntelligent voice promptsWEBUISupport WEBUI configuration

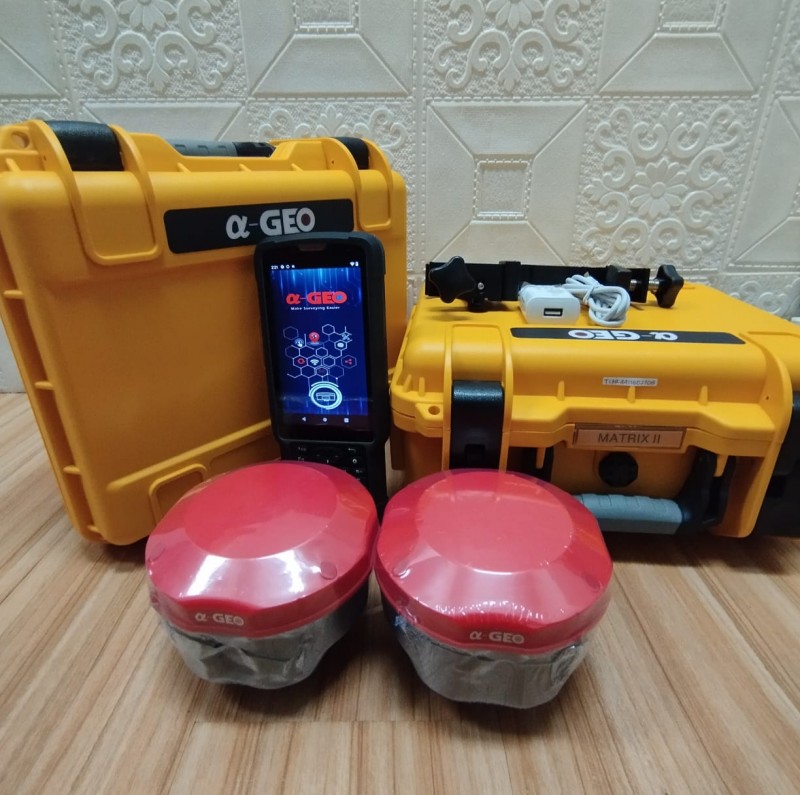

INCLUDE :
base
Rover
Controller
Pole Carbon
Tripod Statif
Tribrach Adapter
Antena Internal
Charger
Kabel Download Data
Box Hardcase
Hubungi :081289854242/08176755161
Banten - Tangerang Selatan
