Lebih Lengkap Mengenai Total Station Topcon GTS255

Deskripsi:

Telah hadir Total Station legendaris pengganti Topcon GTS 235 dengan
kualitas terjamin dan harga ekonomis.TOPCON GTS 255 deilngkapi dengan
Dual Axis Tilt Sensor Total Station. kemampuan jangkuan jarak 1 prisma
dapat mengukur hingga 2, 000 M

Accuracy jarak juga sangat tinggi ± 2mm+ 2ppm, Angle accuracy: 5”
dengan Internal memory yamg sangat lega yaitu 24, 000 Points, kemampuan
Battery life time: 9 jam dan dilengkapi dengan dua batere.
Spesifikasi Teknis:

Telescope

Length 150 Millimeters

Objective Lens Diameter 45mm ( EDM: 50mm)

Magnification 30x

Image Erect

Field of View 1° 30

Resolve Power 3 ”

Min. Focus Distance 1.3 meters

Measurement Range

1 Prism 6560 ft, 2000 meters

3 Prism 8856 ft, 2700 meters

Measuring Accuracy

Prism Mode ± ( 2mm + 2ppm x D) m.s.e. fine, N/ A

Measurement Time 1mm: 1.2sec. ( Initial 4sec.) fine, 0.2sec. ( Initial 3sec.) coarse, N/ A

Angle Measurement

Method Absolute Reading

Detection 2 horizontal, 1 vertical

Minimum reading 5” / 1”, 1/ 5 mgon

Tilt Correction

Type Automatic Vertical and Horizontal compensator

Method Liquid surface reflective profile sensor reading type

Compensating Range ± 3′ ‘

Correction Unit 1 arc sec, N/ A

Computer Unit

Display 2 screen, dot matrix graphic LCD display

Power

Approximate battery life 9 hours including distance measurement, 40 Angle measurement only

Durability

Protection against water and dust IP54

Temperature -20 to 50 degrees C ( -4 to 122 degree F)

Weight

Instrument 4.9KG ( 10.8lb)

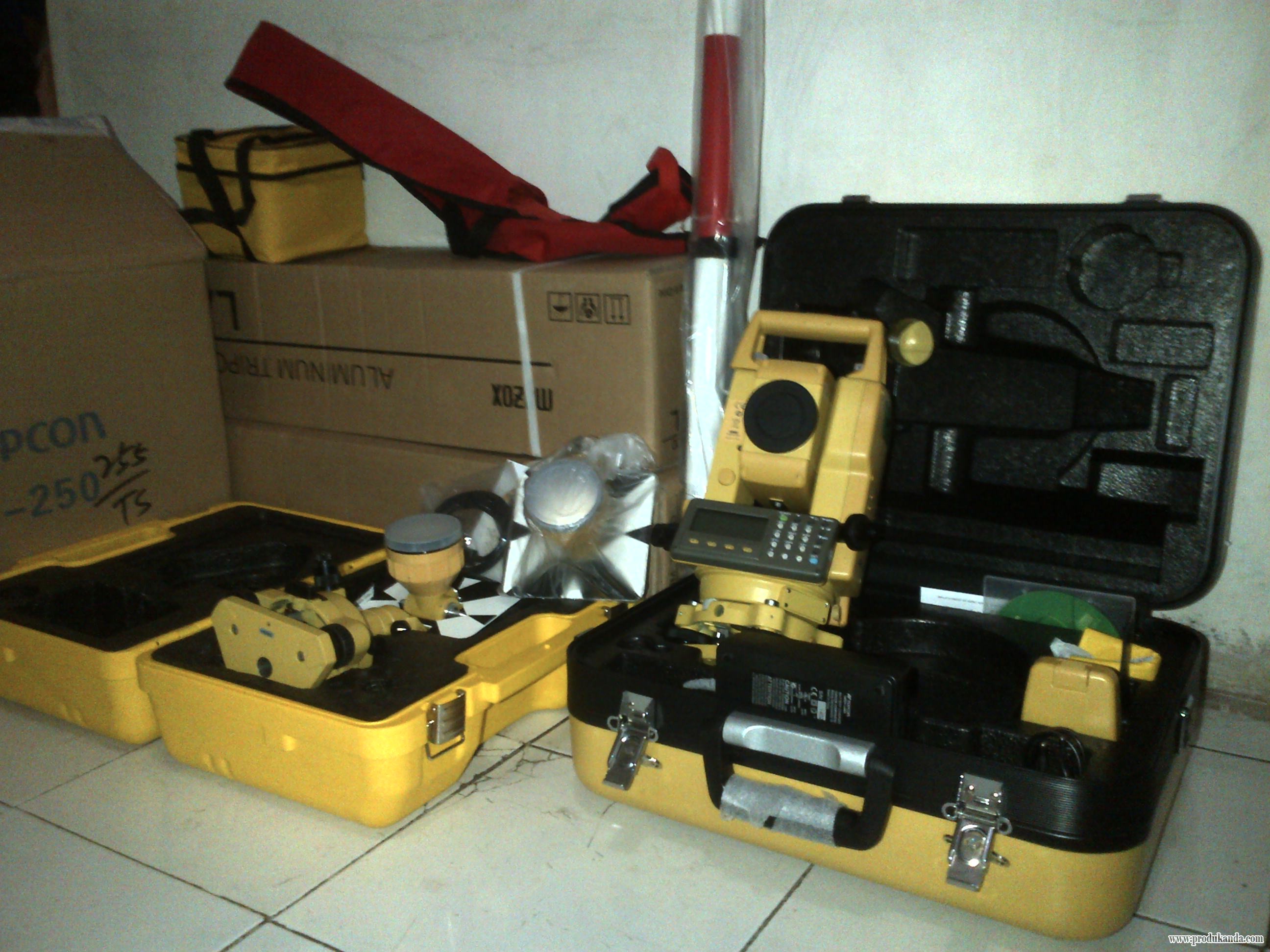

Paket sudah termasuk:

Main unit Total Station Topcon GTS 255

Tripod

Prisma on Tripod

Prisma on pole

Hardcase

Garansi 1 tahun
